Whatever the product; where it can be a Mock-up, Clay-model, a cast or a real model, it will be disamble, assemble and measure to produce 3D and 2D plan.

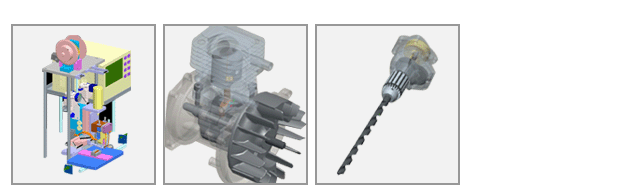

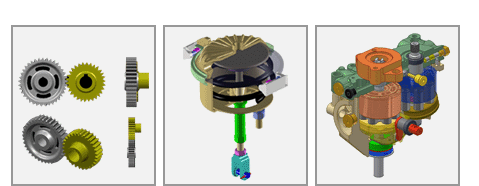

Reverse Engineering

---- CAD model creation of an actually existing product
---- When there are too many changes in the design or the cast that the original CAD model cannot be used
--- - When there is no existing CAD data and you only have the product
--- - When you wish to restore a product when it is worn out or damaged

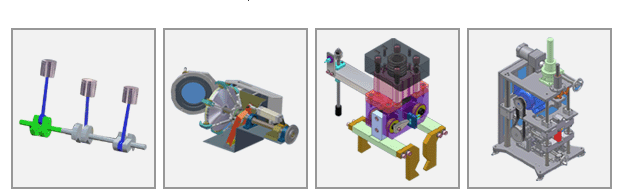

Product Design

When designing the product, through the modelling data the design step itself has the same effect as
--- making a mock-up. Also, through using the same modelling type, you may design the product as if
--- you are creating it.
--- - 2D/3D design initiation with the reviewed data as standard
--- - Design considering the mass-production cost of the product (productivity)
--- - Actual decision of applied technology and parts



Stimulation & Interpretation

Executing a detailed review through a simulation can minimize the design error of the interference check,
--- assembly and feasibility and use the 3D data with CNC data to use on a Mock-up to ensure the swiftness
--- and preciseness of product manufacturing
